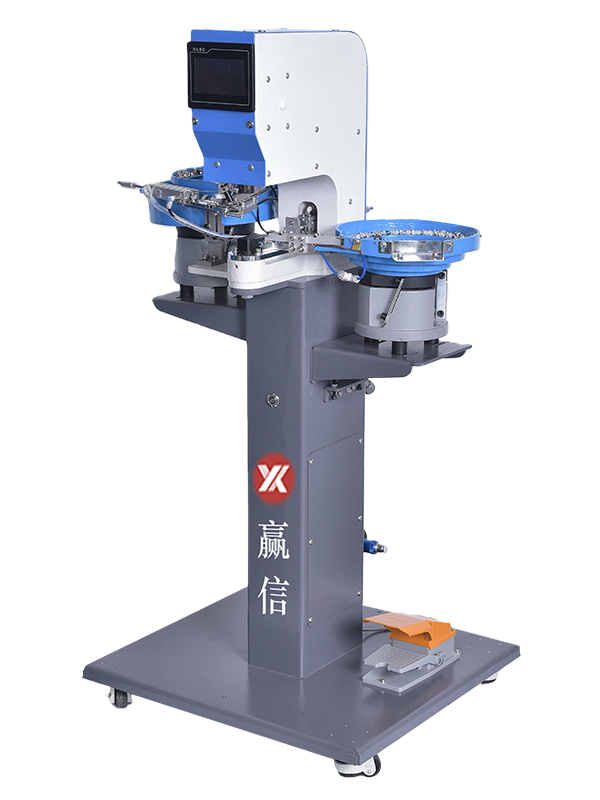

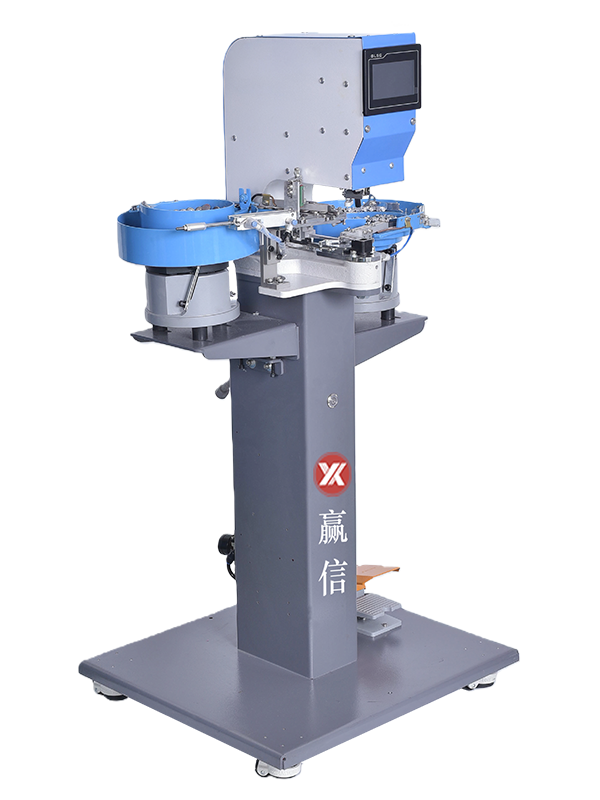

电脑自动送扣钉扣机
YX-YD001
Computer automatic nail fastening machine

产品优点


✩PLC控制
✩红外精准定位
✩可非标自动化定制

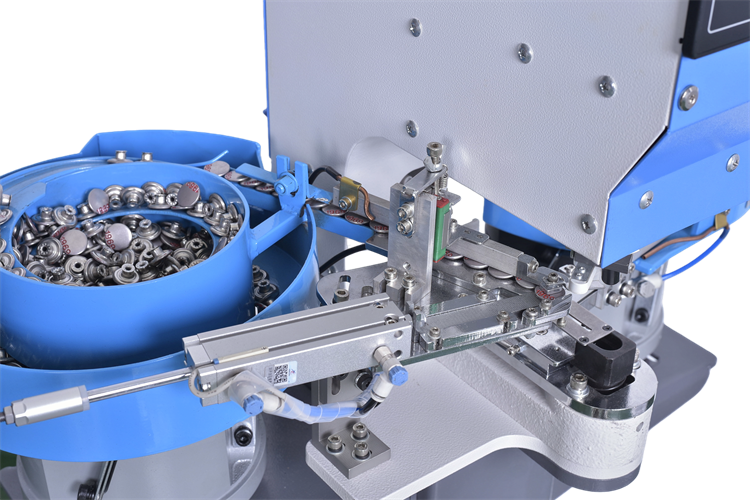

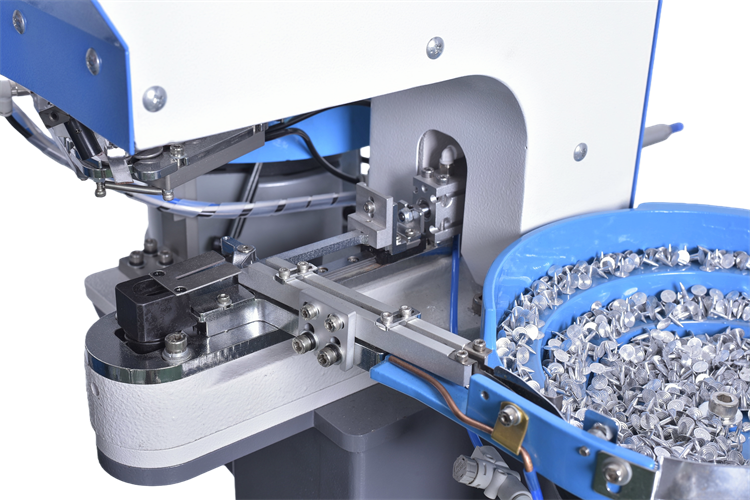

✩可自动送扣
本机为钉铆各种规格四合扣的理想设备,取代手工钉铆的繁重劳动,可根据客户要求,配置各种专用模具。主要适用于牛仔类上装钉扣各种金属回合扣、工艺扣。This machine is the ideal equipment for naiing and riveting all kinds of specifcations, replacingthe heavy labor of manual naling and riveting and can be equpped with all kinds of special moldsaccording to customer requirements. lt is mainly suitable for cowbay clothing, can vas products on all kindsof metal round buckle, process buckde.


技术参数
| 机型 Model | YX-YD001 |
| 电机功率Motor Power | 750W |
| 电机电压Motor voltage | 220V |
| 电机频率Motor frequency | 50/60Hz |
| 最高转速Maximum speed | 3500-5000rmp |
| 冲头轴行程Punch shaft stroke | 34MM |
| 机身尺寸Dimensions | 560X830X1260MM |
